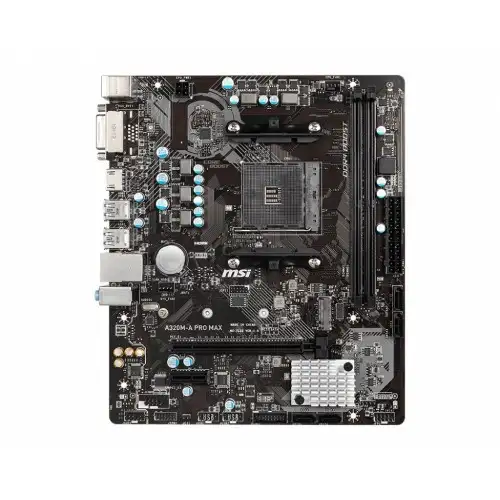

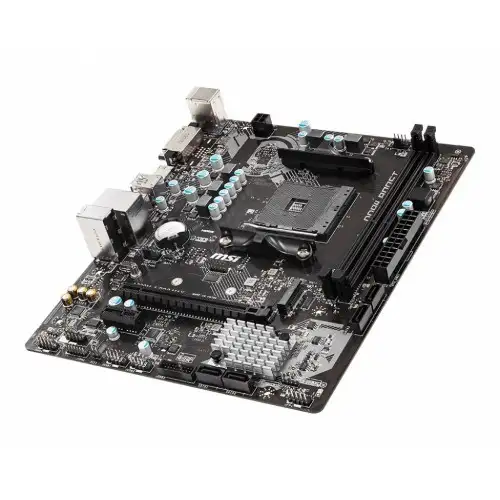

MSI A320M-A Pro Max AMD Motherboard (Used)

Basic Information

Supported CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

Chipset: AMD A320 Chipset

Form Factor: m-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)

Expansion Slots

PCI: 1 x PCIe 3.0 x16 slot

Supports x16 speed

1st, 2nd and 3rd Gen AMD Ryzen

Supports x8 speed

Ryzen with Radeon Vega Graphics

2nd Gen AMD Ryzen with Radeon Graphics

A-series

Athlon X4

Supports x4 speed

AMD Athlon with Radeon Vega Graphics

PCIe 2.0 x1 slot

M.2 Socket

1x M.2 slot (Key M)

Supports PCIe 3.0 x4 and SATA 6Gb/s

1st, 2nd and 3rd Gen AMD Ryzen

Ryzen with Radeon Vega Graphics

2nd Gen AMD Ryzen with Radeon Graphics

Memory

Type: Dual channel memory architecture

Supports ECC UDIMM memory (non-ECC mode)

Support non-ECC UDIMM memory

Slots: 2

Supported Memory: Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC)

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)

Maximum Memory: 32GB

Graphics

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2

1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2

Only support when using the processor with

Max Shared Memory

GraphicssMaximum shared memory of 2048 MB

Connector & Ports

HDMI

1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

DVI-D (s)

Yes1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

USB (s)

AMD A320 Chipset

6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

LAN Port (s)

1 x Realtek 8111H Gigabit LAN controller

Supported Storage

AMD A320 Chipset

4 x SATA 6Gb/s ports

Supports RAID 0, RAID1 and RAID 10

1x M.2 slot (Key M)

Supports PCIe 3.0 x4 and SATA 6Gb/s

1st, 2nd and 3rd Gen AMD Ryzen™

Ryzen with Radeon Vega Graphics

2nd Gen AMD Ryzen with Radeon Graphics

Supports PCIe 3.0 x2 and SATA 6Gb/s

AMD Athlon with Radeon™ Vega Graphics

A-series

Athlon X4

Supports 2242/ 2260/ 2280/ 22110 storage devices

Audio

7.1-Channel High Definition Audio

Internal I/O Ports

1x 24-pin ATX main power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x Front panel connectors

1x Chassis Intrusion connector

1x Serial port connector

1x Clear CMOS jumper

TPM (Trusted Platform Module )

1x TPM module connector

Manufacturing Warranty: 02 Years Warranty
