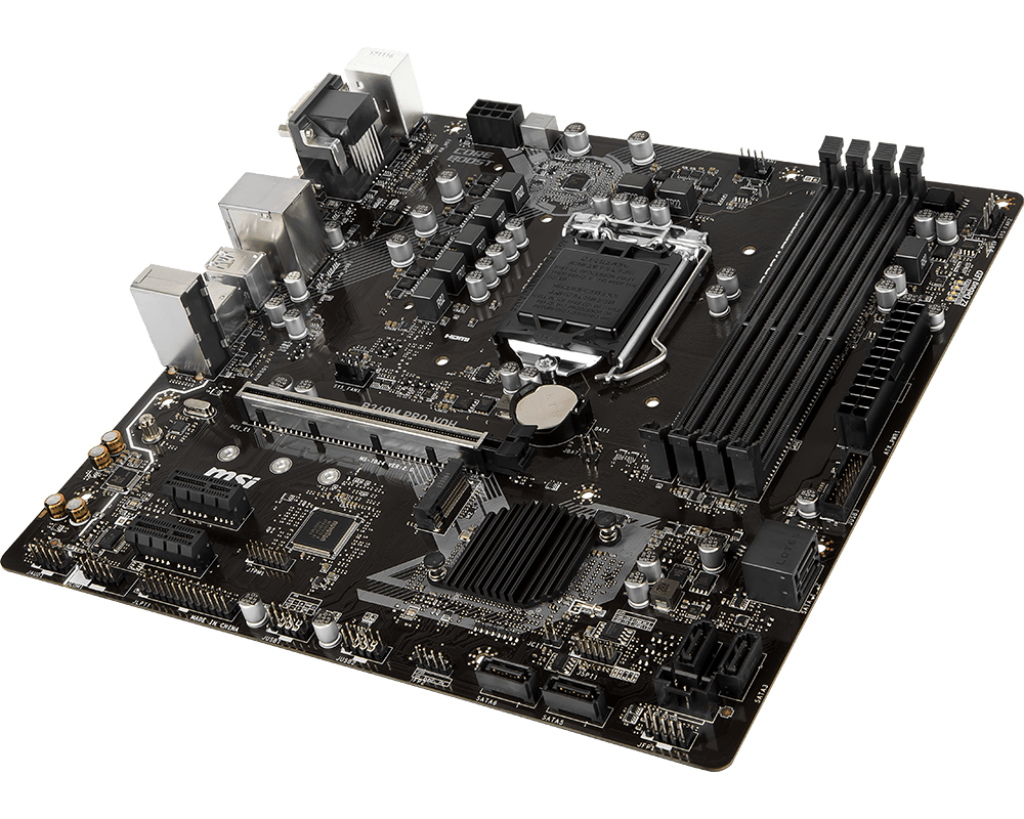

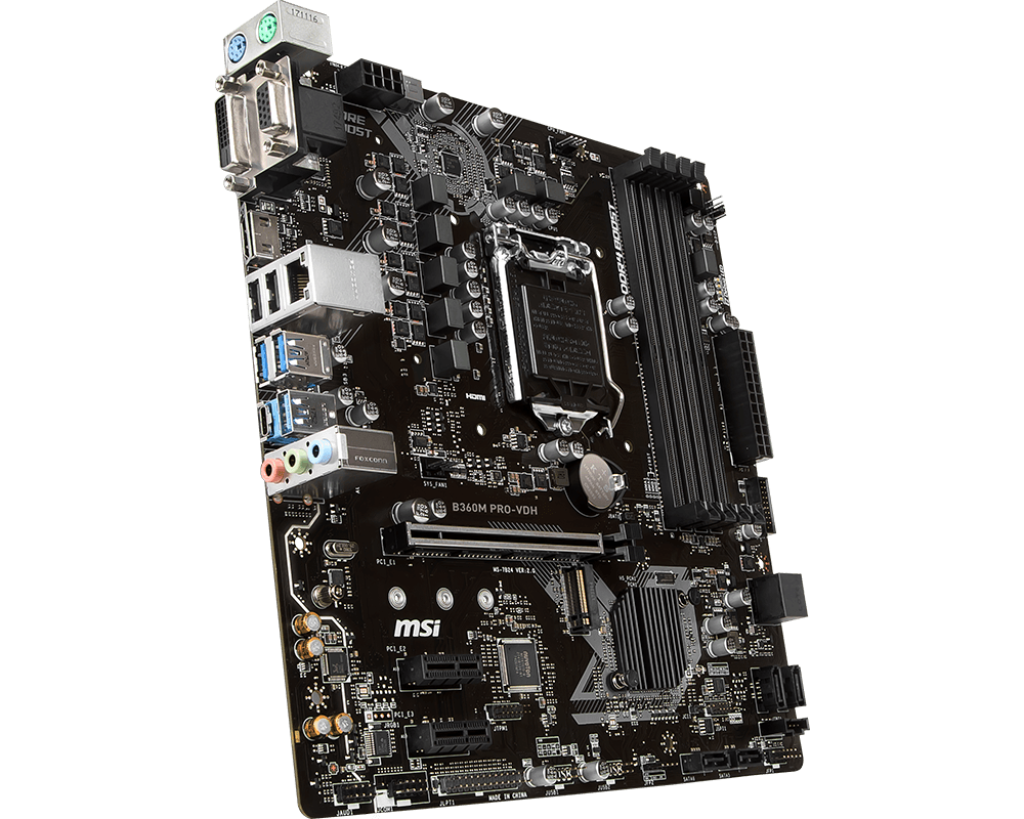

MSI B360M PRO-VDH Intel Motherboard (Used)
Inhouse product
| Phone | : | +8801891965674 |
| : | info@systembuilder.com.bd | |
| Address | : | Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205 |
Basic Information
Supported CPU
Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset
Intel B360 Chipset
Form Factor
m-ATX Form Factor
Expansion Slots
PCI
1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots
M.2 Socket
1 x M.2 slot (Key M)
Memory
Type
Dual-Channel mode
Slots
4 x DDR4 memory slots
Supported Memory
Supports DDR4 2666/ 2400/ 2133 MHz Memory
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory
64 GB
Graphics
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x HDMI port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
Connector & Ports
HDMI
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
DVI-D (s)
Yes
USB (s)
6x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
LAN Port (s)
1 x RTL8111H Gigabit LAN controller
Audio
Realtek ALC887 Codec
7.1-Channel High Definition Audio
Internal I/O Ports
1x PS/2 mouse port
1x VGA port
1x HDMI™ port
1x LAN (RJ45) port
2x USB 3.1 Gen1 ports
1x USB 3.1 Gen1 Type-A port
1x PS/2 keyboard port
1x DVI-D port
2x USB 2.0 ports
1x USB 3.1 Gen1 Type-C port
3x Audio Jacks
