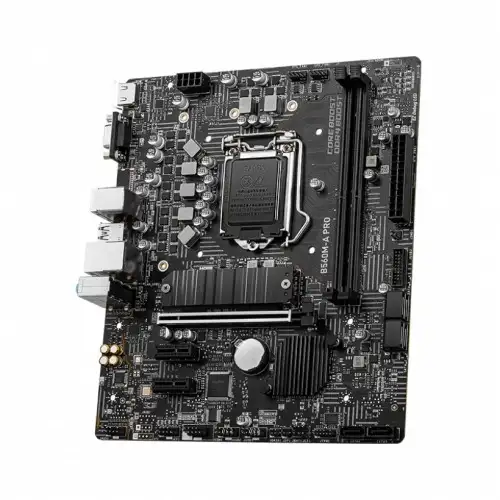

MSI B560M-A PRO Intel 11th Gen mATX Motherboard (Used)

Basic Information

Supported CPU

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Processor socket LGA1200

Chipset: Intel B560 chipset

Expansion Slots

PCI: 1x PCIe x16 slot (From CPU)

Support up to PCIe 4.0 for 11th Gen Intel CPU

Support up to PCIe 3.0 for 10th Gen Intel CPU

2x PCIe 3.0 x1 slots (From B560 chpiset)

M.2 Socket: 1x M.2 slot (Key M)

Supports up to PCIe 4.0x4 (From CPU)

Available on 11th Gen Intel CPU

Supports PCIe 3.0x4 (From B560 chipset)

Supports 2242/ 2260/ 2280 storage devices

Supports Intel Smart Response Technology for Intel Core processors

Memory

Type: DDR4

Slots: 2x memory slots

Supported Memory

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 5200 MHz

1DPC 2R Max speed up to 4700+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

Maximum Memory: 64GB

Graphics

1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

Connector & Ports

HDMI: 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

D-Sub (s): 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz

LAN Port (s): 1x Realtek 8125B 2.5Gbps LAN controller

Supported Storage

6x SATA 6Gb/s ports (From B560 chipset)

1x M.2 slot (Key M)

Supports up to PCIe 4.0x4 (From CPU)

Available on 11th Gen Intel CPU

Supports PCIe 3.0x4 (From B560 chipset)

Supports 2242/ 2260/ 2280 storage devices

Supports Intel Smart Response Technology for Intel Core processors

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Internal I/O Ports

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

6x SATA 6Gb/s connectors

1x M.2 slot (M-Key)

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x Serial port connector

1x Tuning Controller Connector

TPM (Trusted Platform Module )

1 x TPM module connector

Warranty Information

Manufacturing Warranty : 1 Year
