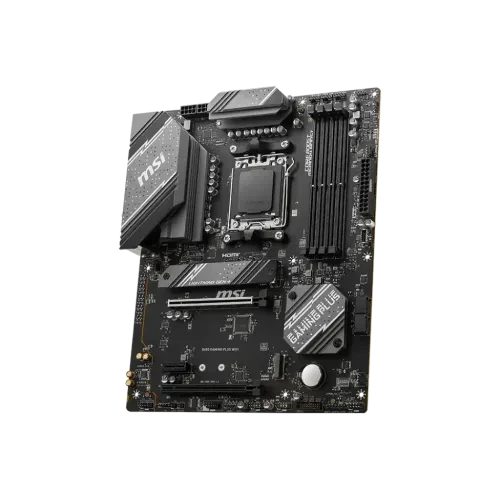

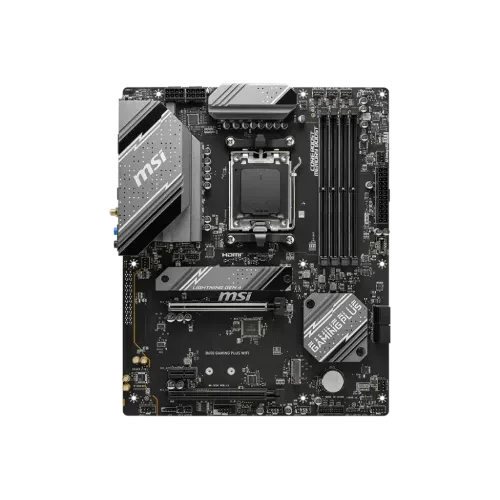

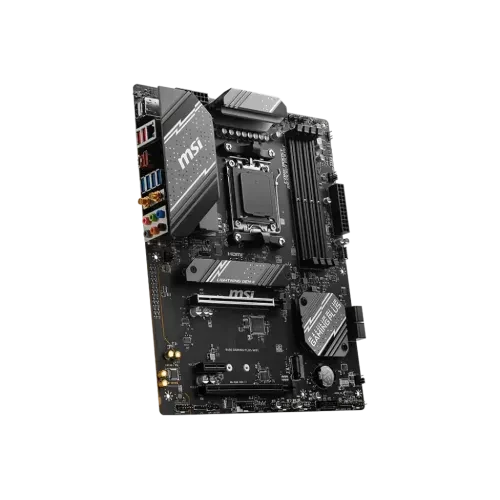

MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard

(0 reviews)

Sold by:
Inhouse product

Price:
৳23 000 /1

Number of RAM Slots:
Memory Type:
Motherboard Manufacturer:
Supported Ram BUS Speed:
Cpu Socket:
Product Condition:
Quantity:
(10 available)

Total Price:

Phone  :  +8801992298693, +8801891965674
Email  :  [email protected]
Address  :  Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205
Share:
 Specification
Basic Information

Supported CPU

  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Socket AM5

Chipset

  • AMD B650

Form Factor

  • ATX
  • 243.84mmx304.8mm

Audio

  • Realtek ALC897 Codec
  • 7.1-Channel High Definition Audio
Expansion Slots

PCI

  • 2x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory

Type

  • DDR5

Slots

  • 4 DIMMs

Supported Memory

  • Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency:
  • • 1DPC 1R Max speed up to 6000+ MHz
  • • 1DPC 2R Max speed up to 6000+ MHz
  • • 2DPC 1R Max speed up to 6000+ MHz
  • • 2DPC 2R Max speed up to 5400+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports AMD EXPO

Maximum Memory

  • 192GB
Graphics

Graphics

  • 1x HDMI
  • Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
  • 1x DisplayPort
  • Supports DP1.4, maximum resolution of 4K 60Hz
  • AMD MULTI-GPU Support

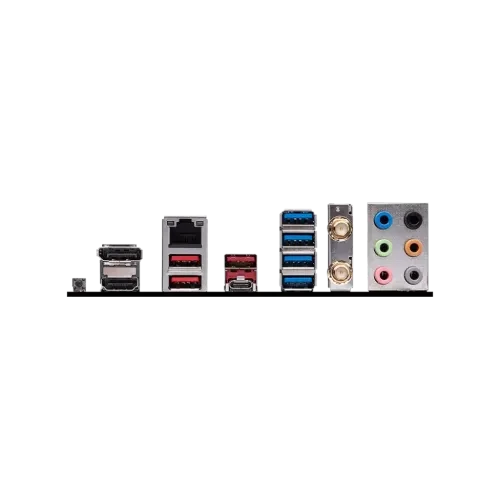

Connector & Ports

HDMI

  • 1x HDMI

Display Port (s)

  • 1x DisplayPort

USB (s)

  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)

LAN Port (s)

  • Realtek 8125BG 2.5G LAN
  • Wireless Communication module
  • AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth 5.3

Supported Storage

  • 2x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 4x SATA 6G

RAID

  • Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Internal I/O Ports

  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports

TPM (Trusted Platform Module )

  • 1x TPM pin header(Support TPM 2.0)
Others

Special Features

  • 4x EZ Debug LED
Warranty Information

Manufacturing Warranty

  • 3 Years
