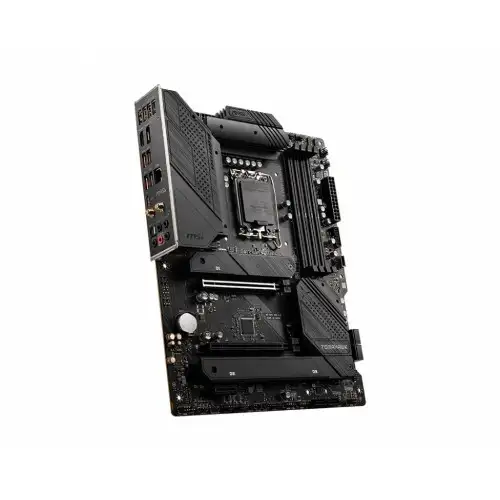

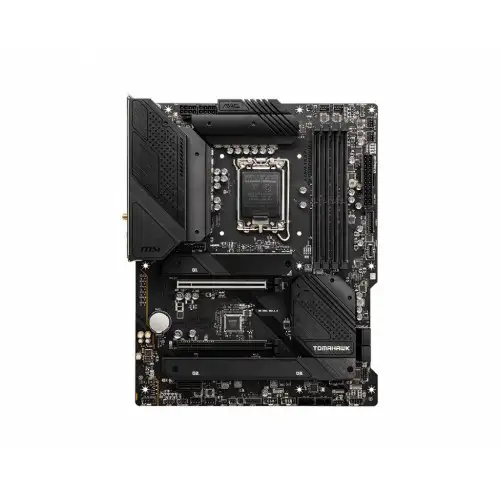

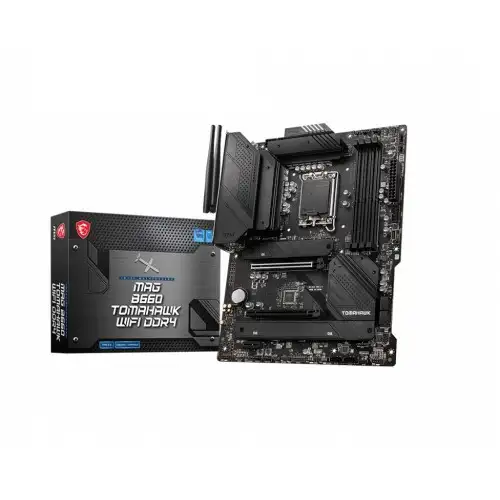

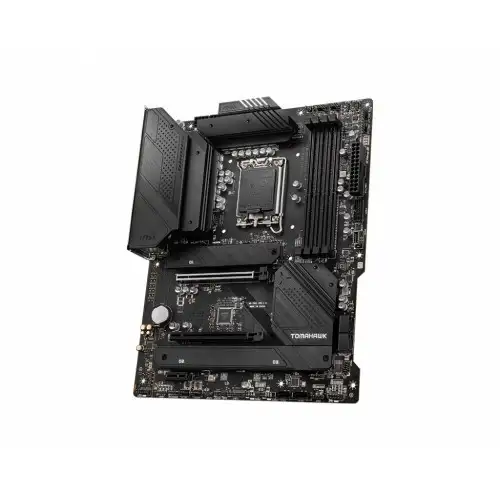

MSI MAG B660 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard

Basic Information

Supported CPU

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors

Chipset

Processor socket LGA1700

Form Factor

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Audio

7.1-Channel High Definition Audio

Supports S/PDIF output

Memory

Type: DDR4

Slots

4x DDR4 memory slots

Supported Memory

Supports 1R 2133 / 2666 / 3200 MHz (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 4800+ MHz

1DPC 2R Max speed up to 4000+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 3600+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

Maximum Memory: 128GB

Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Supports AMD CrossFire Technology

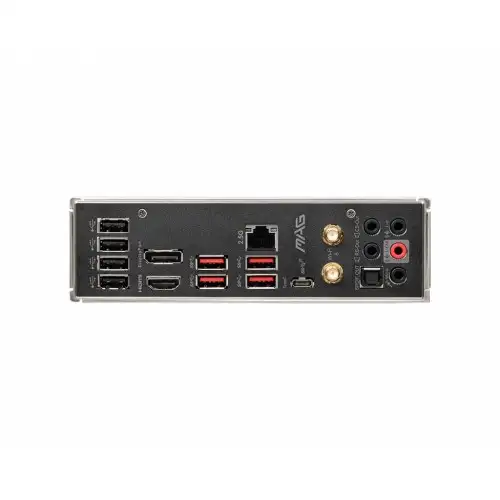

Connector & Ports

HDMI

HDMI 2.1 Port

Display Port (s)

DisplayPort 1.4

USB (s)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

LAN Port (s)

1x Realtek RTL8125B-CG 2.5Gbps LAN controller

Wireless Communication module

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2

Supported Storage

6x SATA 6Gb/s ports

SATA5~8 (From B660 chipset)

SATAA~B (From ASM1061)

Supports up to PCIe 4.0 x4

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 & M2_3 slots (From B660 chipset)

M2_2 supports up to PCIe 4.0 x4

M2_3 supports up to PCIe 4.0 x2 1

Supports SATA up to 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Intel Optane Memory

Audio

HD Audio Connectors

1x Front panel audio connector

Internal I/O Ports

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

5x 4-pin system fan connectors

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

1x Tuning Controller connector

TPM (Trusted Platform Module )

1x TPM module connector

Manufacturing Warranty: 3 years
