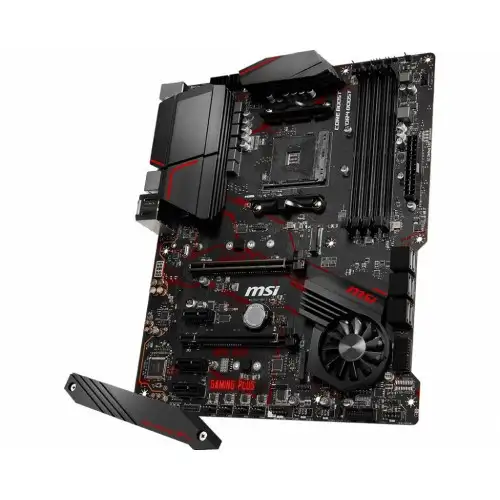

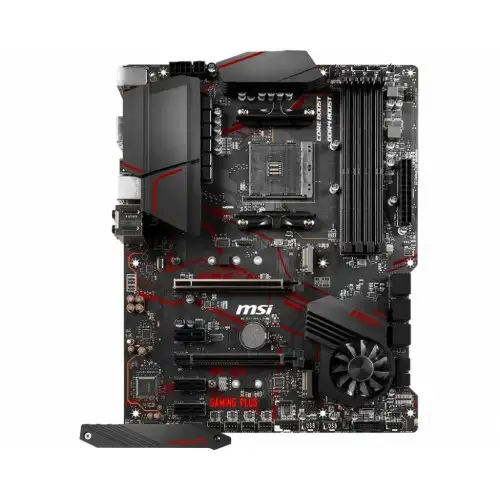

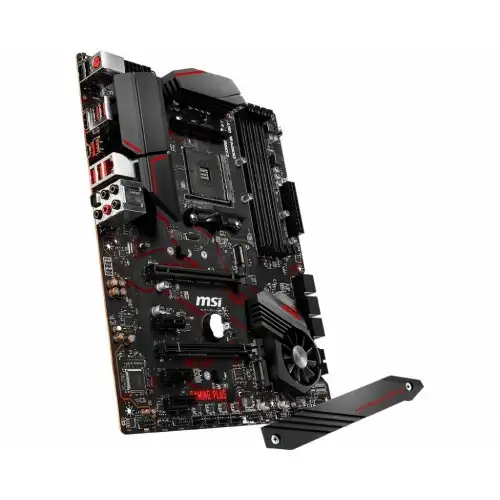

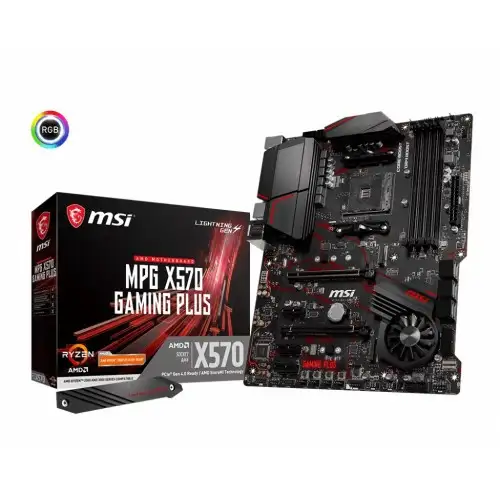

MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard (Used)

Basic Information

Supported CPU

Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors

Chipset: AMD X570 Chipset

Form Factor

ATX Form Factor

Audio: - 7.1-Channel High Definition Audio

Expansion Slots

PCI

- 1x PCIe 4.0/3.0 x16 slot (PCI_E1)

- 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode

- 2nd Gen AMD Ryzen support PCIe 3.0x16 mode

-Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode

- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)

- 3x PCIe 3.0 x1 slots1

PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.

M.2 Socket

- Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory

- 2x M.2 slots (Key M)

Memory

Type: DDR4

Slots

MEMORY CHANNEL: Dual

DIMM SLOTS: 4

Supported Memory

1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE

Maximum Memory: Maximum shared memory of 2048 MB

Graphics

- 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

- Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors.

- Supports 2-Way AMD CrossFire Technology

Max Shared Memory

- Maximum shared memory of 2048 MB

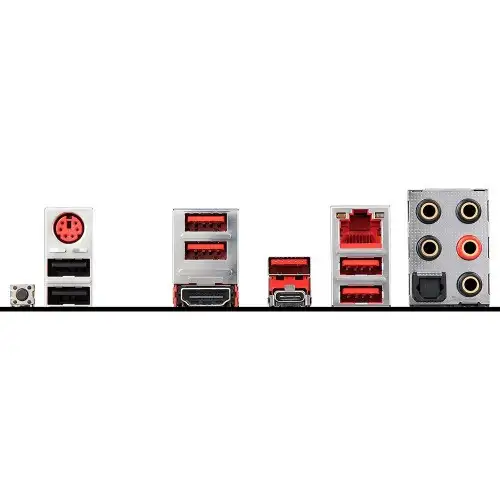

Connector & Ports

HDMI:  1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

USB (s)

AMD X570 Chipset :

- 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)

- 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor :

- 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzenwith Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel

- 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

LAN Port (s)

- 1x Realtek 8111H Gigabit LAN Controller

Supported Storage

AMD X570 Chipset:

- 4x SATA 6Gb/s ports(SATA3-SATA6)

- 2x M.2 slots (Key M)

- M2_1 slot(from AMD Processor)

- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)

- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with

Radeon Graphics)

- Supports 2242/ 2260/ 2280/ 22110 storage devices

- M2_2 slot (from AMD® X570 Chipset)

- Supports PCIe 3.0 x4 and SATA 6Gb/s

- Supports 2242/ 2260/ 2280 storage devices

ASMedia ASM1061: 2x SATA 6Gb/s ports (SATA1, SATA2)

Audio

Realtek ALC1220 Codec:

- 7.1-Channel High Definition Audio

- Supports Optical S/PDIF output

Internal I/O Ports

Expansion Slots:

1 x PCIe 4.0 x16 (x16 mode)

1 x PCIe 4.0 x16 (x4 mode)

3 x PCIe 3.0 x1

USB:

2 x USB 2.0 Header (Supports 4 USB Type-A Ports)

2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Ports)

Multi-GPU Support: 2-Way AMD CrossFireX

Air Cooling:

1 x 4-Pin CPU

4 x 4-Pin System

Liquid Cooling:: 1 x 4-Pin Pump

Power Connectors:

1 x 24-Pin Mainboard

1 x 8-Pin CPU

1 x 4-Pin CPU

Security: Chassis Intrusion, TPM Module

LED Header: 4 x RGB

Audio: None

Diagnostics: Clear CMOS

Legacy: 1 x Serial

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump connector

4x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Serial port connector

1x Clear CMOS jumper

1x Chassis Intrusion connector

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

4x EZ Debug LEDs

TPM (Trusted Platform Module )

1x TPM module connector
