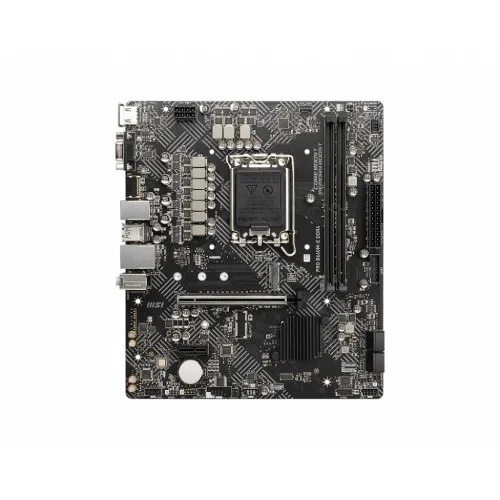

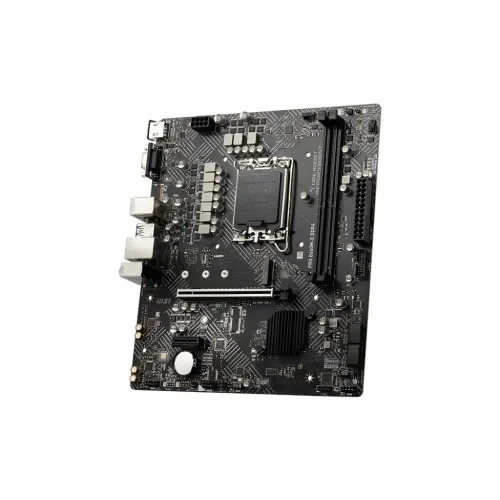

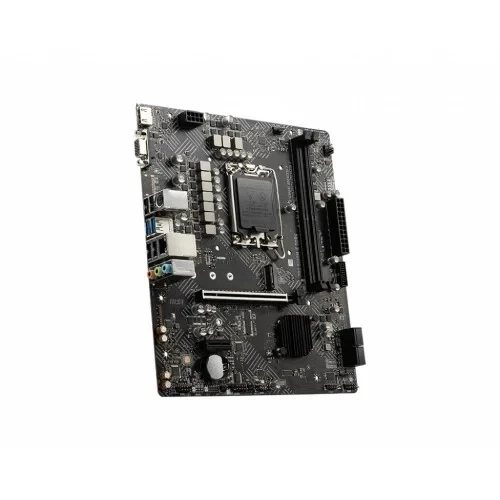

MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard
(0 reviews)
Sold by:
Inhouse product
Inhouse product
Price:
৳12 200
/1
| Phone | : | +8801992298693, +8801891965674 |
| : | [email protected] | |
| Address | : | Shop 38, 3rd floor, Sahera Tropical Centre, Bata Signal, New Elephant Rd, Dhaka 1205 |
Share:
Top Selling Products
Specification
Basic Information
Supported CPU
Supports 12th Gen Intel Core Processors, Pentium® Gold and Celeron Processors
Processor socket LGA1700
Chipset: Intel B660 Chipset
Form Factor
M-ATX Form Factor
9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Audio
Realtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From B660 chipset)
Supports PCIe 3.0 x1
M.2 Socket
1x M.2 slot (Key M, from B660 chipset) 1
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Support Intel Optane Memory
Supports Intel Smart Response Technology for Intel Core™ processors
Memory Type : DDR4
Slots
2x DDR4 memory slots
Supported Memory
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory: support up to 64GB
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports
HDMI (BACK PANEL PORTS)
Display Port (s)
DisplayPort (BACK PANEL PORTS)
VGA (s)
Yes (BACK PANEL PORTS)
USB (s)
Intel B660 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s)
1x Intel I219V 1Gbps LAN controller
Internal I/O Ports
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
TPM (Trusted Platform Module )
1x TPM module connector
Others
Special Features
4x EZ Debug LED
Warranty Information
2 years warranty
