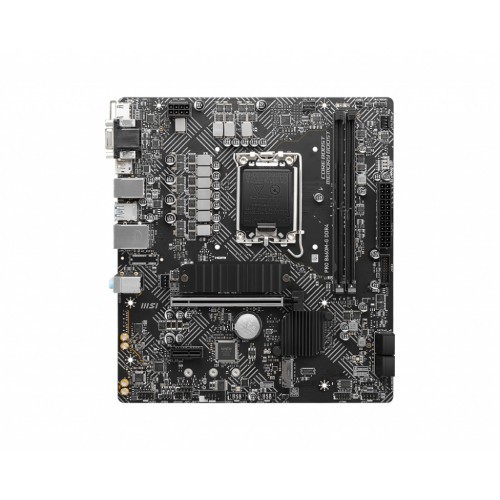

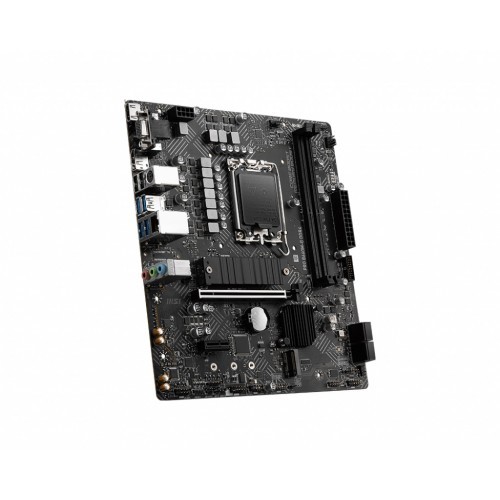

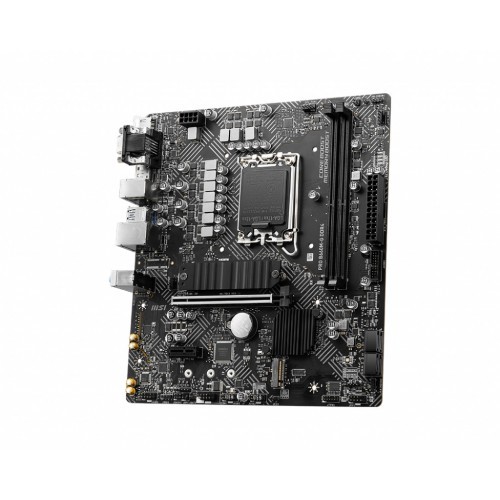

MSI PRO B660M-G DDR4 12th Gen mATX Motherboard

Specification
Basic Information

Supported CPU

• Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
• Processor socket LGA1700

Chipset

• Intel B660 Chipset

BIOS

• BIOS FEATURES
• 1x 256 Mb flash
• UEFI AMI BIOS
• ACPI 6.4, SMBIOS 3.4
• Multi-language

Form Factor

• M-ATX Form Factor
• 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)

Audio

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Expansion Slots

PCI

• 1x PCIe 4.0 x16 slot (from CPU)
• 1x PCIe 3.0 x1 slot (from B660 chipset)

Memory

Type

• DDR4

Slots

• 2x DDR4 memory slots

Supported Memory

• Supports ADL-s 1R 2133/ 2666/ 2933/ 3200 MHz 1
• 1DPC 1R Max speed up to 4600+ MHz
• 1DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

Maximum Memory

• support up to 64GB

Graphics

Graphics

• 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)

Connector & Ports

HDMI

• HDMI (BACK PANEL PORTS)

Display Port (s)

• DisplayPort (BACK PANEL PORTS)

VGA (s)

• Yes (BACK PANEL PORTS)

USB (s)

• Intel B660 Chipset
• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
• 2x USB 2.0 Type-A ports on the back panel
• USB Hub-GL850G
• 4x USB 2.0 ports available through internal connectors

LAN Port (s)

• 1x Realtek RTL8125BG 2.5Gbps LAN controller

Supported Storage

• 4x SATA 6Gb/s ports (From B660 chipset) 1
• 2x M.2 slots (Key M)
• M2_1 slot (From CPU)
• Supports PCIe 4.0 x4
• Supports 2242/ 2260/ 2280 storage devices
• M2_2 slot (From B660 chipset) 1
• Supports PCIe 4.0 x4
• Supports SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• Supports Intel Optane Technology
• SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Audio

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Internal I/O Ports

INTERNAL CONNECTORS:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x USB 2.0 connector (support additional 4 USB ports)
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
• 1x 4-pin CPU fan connector
• 2x 4-pin system fan connectorx
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x JRGB
• 2x JRAINBOW
• 1x Tuning Controller Connector

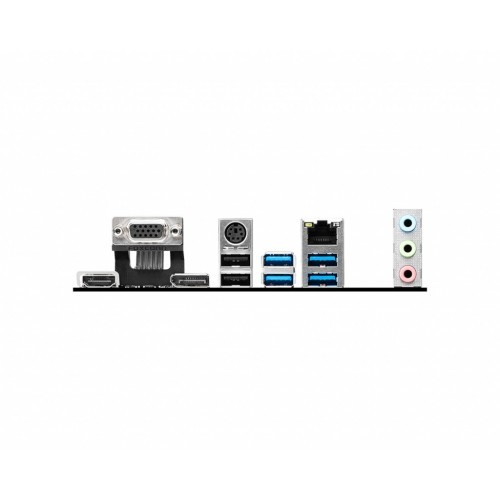

• BACK PANEL CONNECTORS:
• VGA
• Keyboard / Mouse
• LAN port
• Audio connector
• HDMI
• DisplayPort
• USB 2.0
• USB 3.2 Gen 1 5Gbps Type-A

TPM (Trusted Platform Module )

• 1x TPM module connector

Others

Special Features

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED
• LED FEATURE
• 4x EZ Debug LED

Warranty Information

Manufacturing Warranty

• 3 years warranty
