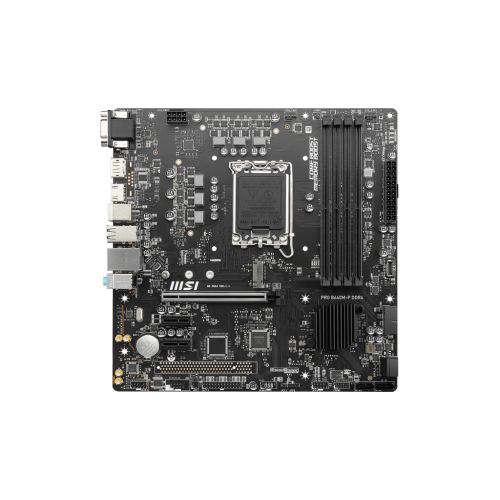

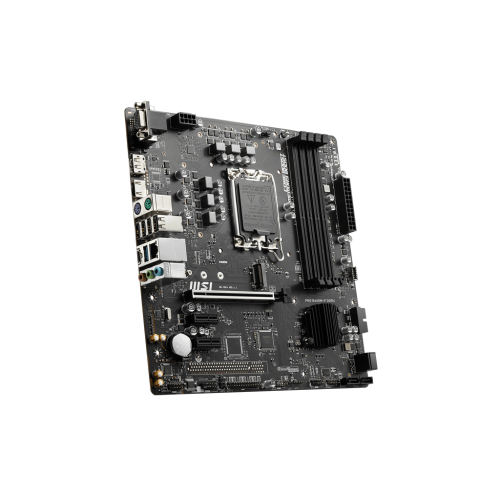

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard

Specification
Basic Information

Supported CPU

• Supports 12th Gen Intel Core Processors, Pentium Gold, and Celeron® Processors 1
• Processor socket LGA1700

Chipset

• Intel B660 Chipset

BIOS

• BIOS FEATURES
• 1x 256 Mb flash
• UEFI AMI BIOS
• ACPI 6.4, SMBIOS 3.4
• Multi-language

Form Factor

• M-ATX Form Factor
• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Audio

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Expansion Slots

PCI

• 1x PCIe x16 slot
• PCI_E1 (From CPU)
• Supports up to PCIe 4.0 x16
• 2x PCIe x1 slots
• PCI_E2 & PCI_E3 (Fom B660 chipset)
• Supports up to PCIe 3.0

Memory

Type

• DDR4

Slots

• 4x DDR4 memory slots

Supported Memory

• 4x DDR4 memory slots, supporting up to 128GB1
• Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
• Max overclocking frequency:
• 1DPC 1R Max speed up to 4600+ MHz
• 1DPC 2R Max speed up to 4000+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 3600+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)

Maximum Memory

• supporting up to 128GB

Graphics

Graphics

• 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz
• 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz
• 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Connector & Ports

HDMI

• 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz

Display Port (s)

• 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz

VGA (s)

• 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

USB (s)

• 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
• 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset)
• Supports additional 2 USB 3.2 Gen 1 5Gbps ports
• 1x USB 2.0 Type-A connector (From B660 chipset)
• Supports additional 2 USB 2.0 ports

LAN Port (s)

• 1x Realtek RTL8111H 1Gbps LAN controller

Supported Storage

• 4x SATA 6Gb/s ports (From B660 chipset) 1
• 1x M.2 slot (Key M)
• M2_1 slot (From B660 Chipset)
• Supports up to PCIe 4.0 x4
• Supports 2242/ 2260/ 2280 storage devices

Audio

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Internal I/O Ports

• INTERNAL USB CONNECTORS
• 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
• 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset)
• Supports additional 2 USB 3.2 Gen 1 5Gbps ports
• 1x USB 2.0 Type-A connector (From B660 chipset)
• Supports additional 2 USB 2.0 ports

TPM (Trusted Platform Module )

• 1x TPM module connector

Others

Special Features

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

Warranty Information

Manufacturing Warranty

• 3 years warranty
