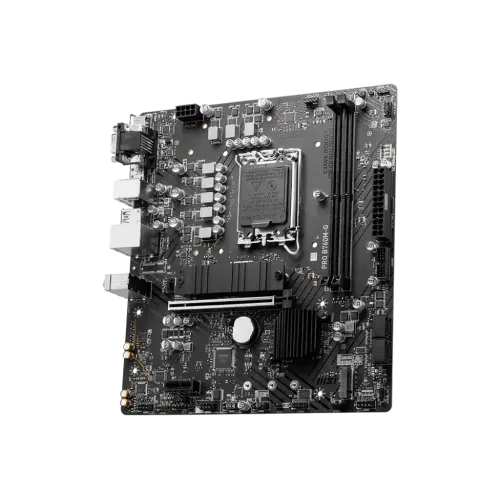

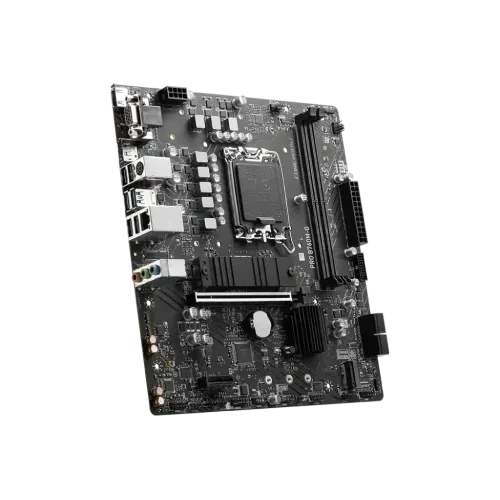

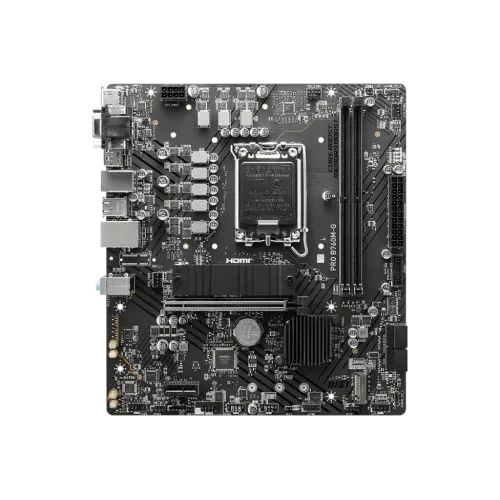

MSI PRO B760M-G 12th Gen & 13th Gen mATX Motherboard

Specification
Basic Information

Supported CPU

• Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
• LGA 1700

Chipset

• INTEL B760

Form Factor

• mATX
• 220mmx243.84mm

Audio

• Realtek ALC897 Codec
• 7.1-Channel High-Definition Audio

Expansion Slots

PCI

• 1x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

Memory

Type

• DDR5

Slots

• 2

Supported Memory

• DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
• Max. overclocking frequency:
• • 1DPC 1R Max speed up to 6400+ MHz
• • 1DPC 2R Max speed up to 5600+ MHz
• Supports Intel XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

Maximum Memory

• 96GB

Graphics

Graphics

• 1x HDMI
• Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
• 1x DisplayPort
• Support DP 1.4, maximum resolution of 4K 60Hz*
• 1x VGA
• Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

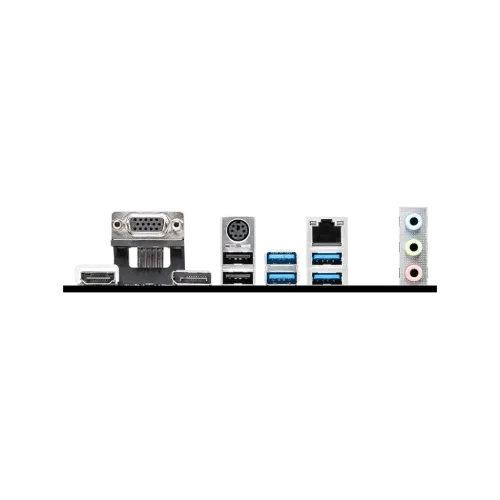

Connector & Ports

HDMI

• 1x HDMI

Display Port (s)

• 1x DisplayPort

VGA (s)

• 1x VGA

USB (s)

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)

LAN Port (s)

• Realtek RTL8125B 2.5Gbps LAN

Supported Storage

• 2x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Internal I/O Ports

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 4x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports

TPM (Trusted Platform Module )

• 1x TPM pin header(Support TPM 2.0)

Others

Special Features

• 4x EZ Debug LED

Warranty Information

Manufacturing Warranty

• 3 years
